Having xHP tuning installed: why a specialized garage makes the difference

A BMW 3 Series (E90) 330i with a six-speed automatic came in for xHP transmission tuning — a popular software modification that optimizes the shift points and clutch pressure of a ZF automatic. We use professional equipment as standard for this, precisely to cover the known risks of this kind of installation. And still it went wrong. How that could happen, what we did to get the car drivable again the same day, and why that illustrates exactly why you are better off having this installed than doing it yourself — you can read it below.

What is xHP tuning and how is it installed?

Through a software flash, xHP adjusts the control of your ZF automatic: faster and firmer shifts, adjusted clutch pressure, optional Launch Control functions. The software is written to the transmission control unit (EGS) via the OBD port — a sensitive procedure, because communication with that control unit must not be interrupted during writing. You can read the article about xHP here.

Can you install xHP yourself?

Technically yes, through xHP's own channel. Not with us: we do sell the unlock and the map pack on our website, but that is always tied to a mandatory appointment at the garage for the installation — so you never get codes from us to flash it yourself. As a matter of policy, xHP does not allow resellers to do so.

If you do it yourself anyway (directly through xHP), you need a license, map pack, OBD interface and a stable power supply. That last one is not a detail: an ordinary battery charger is no substitute for a real PSU. Voltage fluctuations while writing to the transmission control unit are a known and well-documented risk — in the worst case the control unit is damaged, leaving the car immobilized.

Real-world case: it briefly went wrong for us too

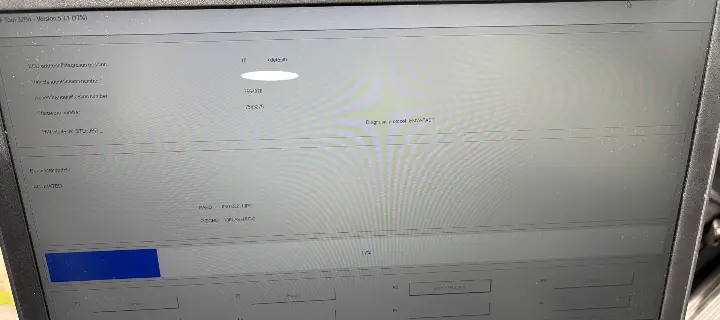

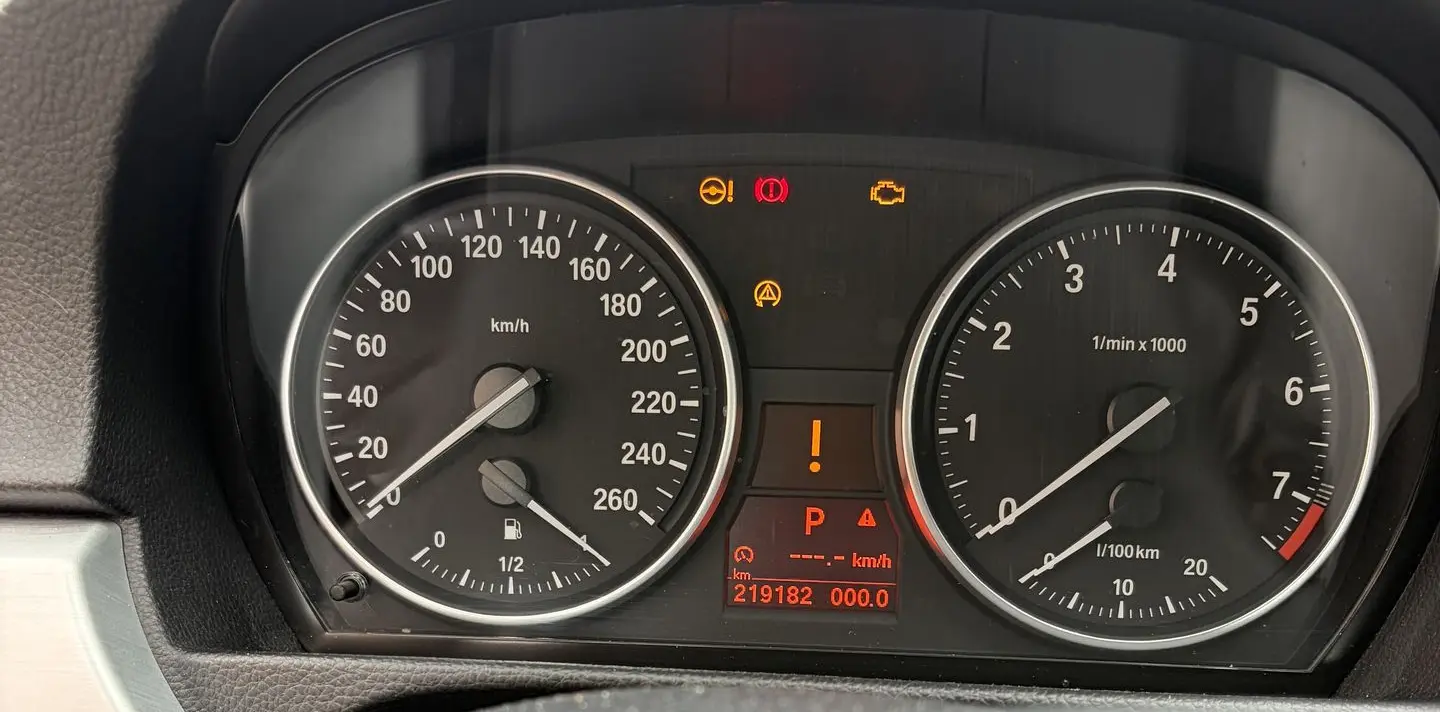

With every xHP installation we use a professional PSU as standard — precisely to rule out that voltage risk. We did so with this 330i as well. Nevertheless, communication dropped out while the transmission data was being written. The result: the car was completely immobilized. No gear, no speed or rev display, just a warning symbol on the instrument cluster.

In the fault memory we saw two things at once: a series of communication faults with the MOST ring (the optical network that carries the radio, amplifier, telephone module and head unit) and an aborted programming of the transmission control. The customer told us the car's head unit was broken — for the second time, by his account.

It is important to be honest about what we do and do not know: MOST and the bus the transmission control unit sits on (PT-CAN) are two separate networks, linked only via a central gateway. A broken head unit therefore does not automatically take down transmission communication — linking those two faults just like that would be premature. A failing electronic component can, however, cause voltage or ground problems elsewhere in the car, and that remains a real, as yet unconfirmed hypothesis. Proving it requires a separate, targeted diagnosis — which we had not yet carried out at the time of writing.

What we did do immediately: flash the car back to the original, working software. That way the customer drove home the same day — the xHP installation itself is on hold until the underlying fault has been cleared up.

Free recovery versus paid diagnosis — an important distinction

If an installation goes wrong with us, we restore the car to the original software free of charge as standard, so you can simply keep driving. That is not a diagnosis, but a guarantee that the car is drivable. Finding the exact cause — needed to make a next xHP attempt succeed — is a separate diagnostic step, which we invoice at our usual hourly rate for diagnostics and electrical work. This is deliberate: recovering our own installation attempt is our responsibility; tracking down an underlying, possibly pre-existing electrical problem with the car is not.

Why this is exactly the difference between doing it yourself and having it installed

Suppose this had happened at home. xHP offers support on weekdays during office hours, but no physical presence — and with a communication fault like this one, even the diagnostic function in their own app could no longer be used. Without your own diagnostic equipment you are left with an immobilized car and no idea what is going on, until a garage gets involved. And even then: the car has to be collected by a tow truck, and you pay our full diagnostic and electrical rate from scratch — without the guarantee you do get from us on an installation we carried out ourselves.

With us you are never left alone with an immobilized car: professional equipment (including PSU), direct follow-up, and free recovery to a drivable state if our own installation attempt goes wrong.

What if your xHP installation goes wrong anyway?

Recognizable signs: the car no longer shifts, shows no speed or revs, or stays stuck in limp mode. For an installation carried out by us, we restore it to a drivable state free of charge. Did you get stuck after your own installation attempt? Then make an appointment — we can diagnose the car and, where possible, restore it to the original software, at our standard rate for diagnostics and electrical work.

FAQ

Can I buy an xHP license from BimmerStore and install it myself?

No. You can buy the unlock and the map pack on our website, but the installation is always done at our garage by appointment — xHP does not allow resellers to hand out self-installation codes.

Is xHP tuning safe for my gearbox?

With a correct installation and a stable power supply, yes. The biggest known risk is voltage fluctuation while writing to the transmission control unit — which is why we use a professional PSU as standard, not a battery charger.

What does it cost if an xHP flash goes wrong?

If the installation goes wrong with us, we restore the car to the original software free of charge so you can keep driving. Any more in-depth diagnosis of an underlying problem is invoiced separately, at our diagnostic/electrical rate.

What happens if my car becomes immobilized during the installation?

With us, that is limited to the time needed to flash back to the original software — usually the same day. With a self-installation at home, you depend on xHP's telephone support and your car may have to be towed to a garage.

Can xHP solve my problem remotely if the installation fails?

Not always. With communication faults, even the diagnostic function in their software can fail — xHP can then only see raw flash data and cannot make a full diagnosis. At that point, being physically at a garage makes the difference.

Ready to have your BMW or MINI tuned safely? Contact us for an appointment.
